PYROSLEEVE / FIRESLEEVE:
Silicone Coated Glass Fibre Sleevings

PYROSLEEVE / FIRESLEEVE

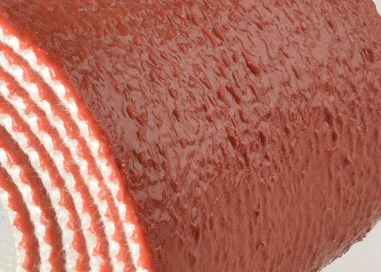

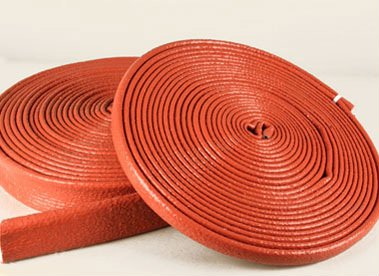

PYROSLEEVE, sometimes referred to as firesleeve, is manufactured from ‘E’ glass fibre yarn knitted to form a sleeve and coated with high grade silicone elastomer rubber.

Pyrosleeves offer continuous protection at an operating temperature of 250°C and can withstand molten metal splash at 1200°C

Our Pyrosleeves are highly resistant to most oils, hydraulic fluids, fuels, acids and alkalis and possess outstanding characteristics making them ideal for protecting hose assemblies, cables, and wires.

Applications include:

Protecting hose & cable assemblies from high heat sources
Protecting hose & cable assemblies from molten metal splashes
Protecting personnel from burns when working near hot gases, steam lines etc.
Fire suppression systems

Our PYROSLEEVE accreditation

ASTP 5007 – MSHA Accepted

Tested to:

BS EN ISO 4589-2:2017
ISO 5659-2:2017
EN 45545-2:2020
NV X 70-100-1:2006
NV X 70-100-2:2006
ASTM D-578

Flammability: UL 94 / IEC 60695-11-10

Silicone is rated as V-0

Available in a wide range of bore sizes from 6mm - 127mm

Supplied in 15M coils or cut to custom lengths

Fully REACH & RoHS Compliant and Conflict Minerals free.

What temperature will glass fibre seals operate at?

Depending upon the application glass fibre seals are capable of withstanding 600°C
Do you have any products which operate at temperatures > 600°?

Yes, we do have certain special materials - please contact our Sales Dept. to discuss.
What is your order processing time?

It depends upon the product(s) and quantity needed. We are a manufacturer so there is usually a production lead time.
For most orders we can turn them around within 10-12 working days but it is always a good idea to check with us first. Lead times can also vary according to the time of year. In the heating season we do get very busy.
What temperature will the adhesive backing on glass fibre seals/tapes withstand?

The adhesive backing is purely a 'fixing aid' during assembly. The adhesive backing will degrade at temperatures of 180°C or above but has served its purpose once the glass fibre seal/tape is held in place by some other mechanical means.
What is the best way to start to remove the amber release film at the beginning of the roll of adhesive backed product?

Sometimes it can be a little fiddly to start but there is a technique and if you contact our Sales Dept. we can provide a detailed instruction.

What is the difference between a 'woven' and a 'knitted' tape?

Woven tapes are constructed with warp and weft threads in an over and under construction whereas knitted tapes are formed with a series of interlocking 'loops' like a knitted sweater.
Which is better 'knitted' or 'woven' tape?

Woven tapes are often less flexible than knitted tapes. It depends upon the application as to which is considered better. Knitted tapes are very soft and conformable. They bed down well and are perfect for taping awkward shapes. Both woven and knitted tapes have their place.
How do I prevent the end of a glass fibre seal or tape from fraying when cut?

We recommend the use of our adhesive backed glass cloth tapes for end sealing.
How many turns of adhesive glass cloth tape should I apply to the seal?

We recommend one and a half turns as a minimum.
What can I use on the ends of the firesleeve when it is cut?

We recommend our silicone rubber self-amalgamating tape to seal the end.
